707-99-77160 7079977160 Arm Cylinder Seal Kit Komatsu For PC600LC-6A PC600-8 Arm Cylinder Service Kit
| Products Name | 707-99-77160 7079977160 Arm Cylinder Seal Kit |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Model Number | Komatsu PC600LC-6A, PC600-8, PC600-7, PC600-8R, PC600-6A, PC600LC-8R, PC600LC-8, PC750LC-7, PC750-7, PC750LC-6, PC750-6, PC800-7, PC600LC-8E0 |
| Sample | Available |
| Payment Terms | Western Union, Paypal, TT, Transfer |
| Supply Ability | 7000 Piece/Pieces per Month |
| MOQ | 1 SET(negotiation) |
| Feature | Abrasion Resistant, Oil Resistance, High Chemical Resistance |
| Brand Name | Suncar/ OEM |
| CertifiC.A.Tion | ISO9001:2000 |
| Shipping Mode | By air, by sea ,by express (DHL, Fedex, UPS ,TNT etc.) |
| Size | Standard Size |
Product Show:
Types and uses of sealing materials:
The sealing material should meet the requirements of sealing function. Due to the different media to be sealed and the different working conditions of the equipment, different adaptability of the sealing material is required. The requirements for sealing materials are generally:
1.The material has good compactness and is not easy to leak the medium;
2.have appropriate mechanical strength and hardness;
3.Good compressibility and resilience, and small permanent deformation;
4.No softening or decomposition at high temperature, no hardening or brittle cracking at low temperature;
5.Good corrosion resistance, can work for a long time in acid, alkali, oil and other media, its volume and hardness change is small, and it does not adhere to the metal surface;
6.Small friction coefficient and good wear resistance;
7.It has the flexibility to combine with the sealing surface;
8.Good aging resistance and durability;
9.It is convenient to manufacture, cheap and easy to obtain.
Rubber is the most commonly used sealing material. In addition to rubber, graphite, polytetrafluoroethylene and various sealants are suitable for sealing materials.

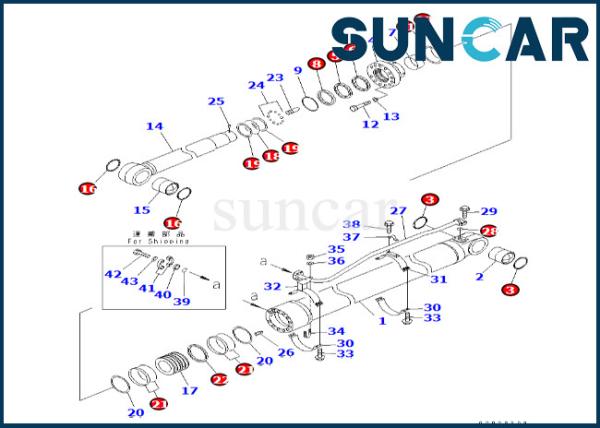

Related Part:
| POS. | Number | Name | Qty. |
| G-1 | 707-01-XU280 | CYLINDER GROUP | 1 |
| | 707-01-0E890 | CYLINDER ASSEMBLY | 1 |
| 1 | 707-13-20410 | • CYLINDER | 1 |
| 2 | 707-76-12520 | • BUSHING | 1 |
| 3 | 07145-00125 | • SEAL,DUST (KIT) | 2 |
| 4 | 707-27-20960 | • HEAD,CYLINDER | 1 |
| 5 | 707-51-14080 | • PACKING,ROD (KIT) | 1 |
| 6 | 707-51-14640 | • RING,BUFFER (KIT) | 1 |
| 7 | 707-52-91170 | • BUSHING | 1 |
| 8 | 198-63-93170 | • SEAL,DUST (KIT) | 1 |
| 9 | 07179-14160 | • RING,SNAP | 1 |
| 10 | 07000-15190 | • O-RING (KIT) | 1 |
| 11 | 707-35-92020 | • RING,BACK-UP (KIT) | 1 |
| 12 | 01011-82705 | • BOLT | 12 |
| 13 | 01643-32780 | • WASHER | 12 |
| 14 | 707-58-14220 | • ROD,PISTON | 1 |
| 15 | 707-76-12520 | • BUSHING | 1 |
| 16 | 07145-00125 | • SEAL,DUST (KIT) | 2 |
| 17 | 707-36-20450 | • PISTON | 1 |
| 18 | 07000-15130 | • O-RING (KIT) | 1 |
| 19 | 07001-05130 | • RING,BACK-UP (KIT) | 2 |
| 20 | 707-44-20910 | • RING | 2 |
| 21 | 707-39-20820 | • RING,WEAR (KIT) | 4 |
| 22 | 707-44-20180 | • RING,PISTON (KIT) | 1 |
| 23 | 707-71-60350 | • PLUNGER | 1 |
| 24 | 04260-01270 | • BALL | 10 |
| 25 | 707-71-91520 | • CAP | 1 |
| 26 | 01310-01232 | • SCREW | 1 |
| 27 | 707-86-12170 | TUBE | 1 |
| 28 | 07000-13038 | O-RING (KIT) | 1 |
| 29 | 01435-01245 | BOLT | 4 |
| 30 | 707-88-96110 | BAND | 2 |
| 31 | 707-88-22000 | BRACKET | 1 |
| 32 | 707-88-25030 | BRACKET | 1 |
| 33 | 01435-01235 | BOLT | 8 |
| 34 | 07283-33442 | CLIP | 1 |
| 35 | 01597-01009 | NUT | 2 |
| 36 | 01643-31032 | WASHER | 2 |
| 37 | 07282-03411 | CLAMP | 1 |
| 38 | 01435-01020 | BOLT | 2 |
| 39 | 07000-13038 | O-RING | 2 |
| 40 | 07378-11210 | HEAD | 2 |
FAQ:
Q1: Are you a trading company or a manufacturer?
A: We are a trading company, and we also have our own factory to produce seals with more than 10 years of production experience.
Q2: What if I only know the model of the excavator? But I can't provide the part number, what should I do?
A: If possible, you can send pictures of old products, labels or sizes for reference.
Q3: What should I do if there is a problem with the product?
A: First of all, I have confidence in the quality of our products. If you find any problem please provide us the picture, we will check after confirmation, please reply us and we will provide you the correct item.
